Trough Type Anti slip Cable Tray Series: Engineered for Safety and Durability

As a leading Trough Type Anti slip Cable Tray Series Manufacturers in China, Jiangsu Youming Group Co., Ltd. designs and produces a comprehensive range of trough-style cable support systems that combine robust cable containment with slip-resistant surfaces for walkable installations. Our series includes galvanized steel trunking with covers, stainless steel ventilated troughs, and non-slip trays with chequered plate covers, along with matching elbows, tees, and round bend accessories.

These systems are engineered for industrial plants, offshore platforms, tunnels, and commercial buildings where cables require mechanical protection, thermal management, and safe access for maintenance personnel. With over 26,000 square meters of production space and fully automated lines, we deliver consistent quality and customization for projects of any scale.

Our Trough Type Range

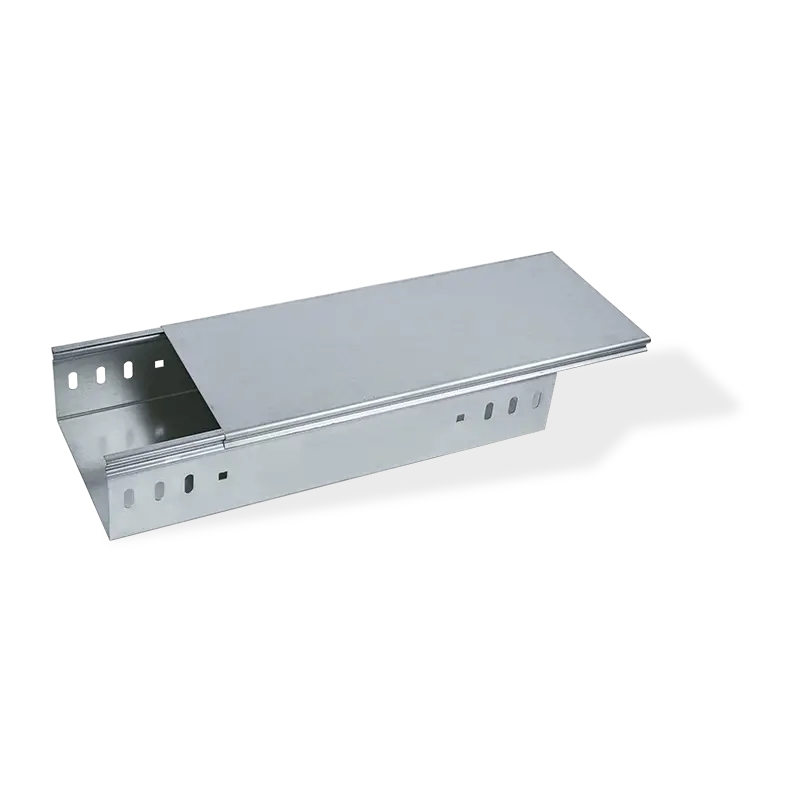

Galvanized Steel Trunking with Cover

Fully enclosed, U-shaped trough with removable cover for dust and impact protection. Available in electro-galvanized or hot-dip galvanized finishes.

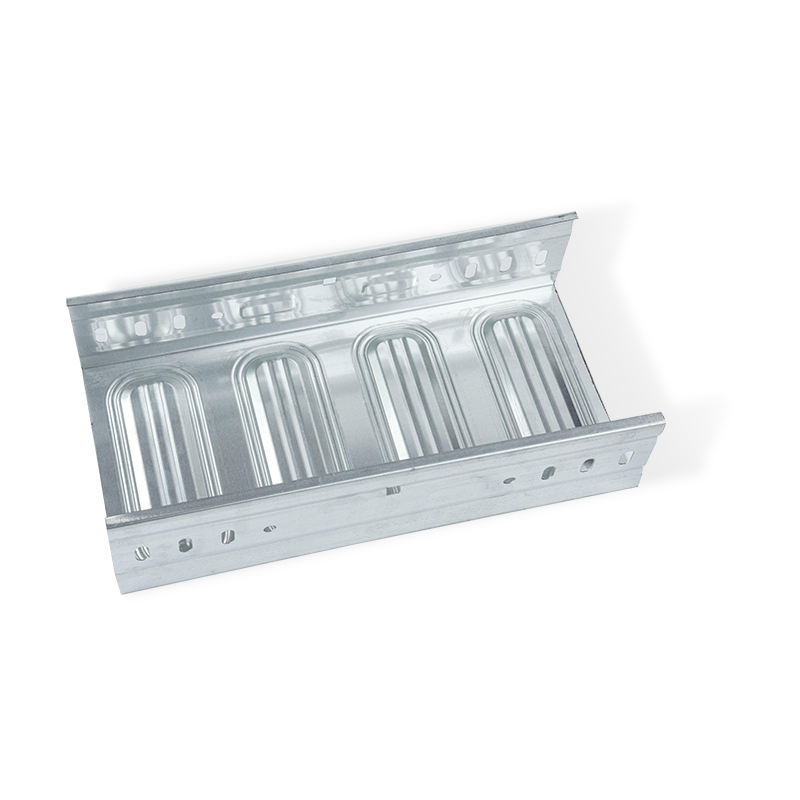

SS304 Molded Ventilated Trough

Stainless steel with louvered or perforated bottom for airflow and heat dissipation. Ideal for chemical, coastal, and hygienic environments.

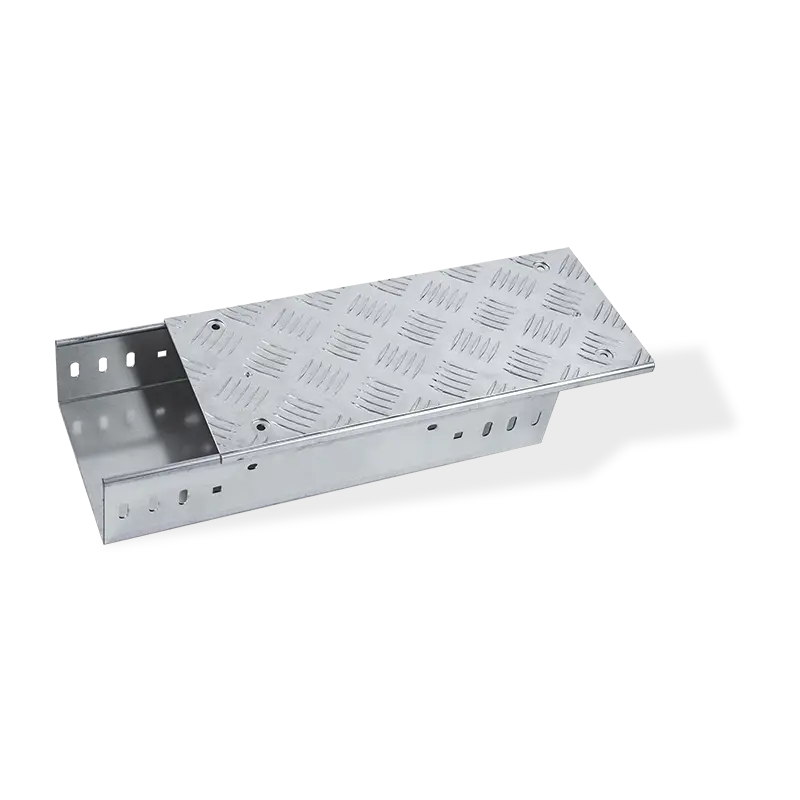

Non-Slip Trough with Chequered Cover

Features a raised diamond pattern cover for slip resistance (R12 rating) and anti-slip embossed base. Suitable for walkable cable galleries.

Application Fit and Material Considerations

Choosing the right trough type depends on the operating environment and cable load. For indoor commercial and industrial settings where dust and physical damage are concerns, our galvanized steel trunking with cover provides a cost-effective solution. In corrosive or washdown areas such as chemical plants, food processing, or marine installations, the SS304 or SS316L ventilated trough offers superior corrosion resistance and easy cleaning.

For elevated walkways or maintenance platforms where personnel may step on the tray, the non-slip trough with chequered plate cover is the preferred choice. Its anti-slip surface meets safety standards like DIN 51130, reducing fall risks in oily or wet conditions.

Critical Specifications and Load Ratings

Our trough systems are available in a wide range of dimensions and materials to match your project requirements. Below is a summary of typical specifications:

Parameter Galvanized Trunking SS304 Ventilated Non-Slip with Cover
Material Q235B steel AISI 304/316L DX51D+Z275 or SS304/316L
Width Range 50–600 mm 100–600 mm 200–800 mm
Side Wall Height 50–150 mm 50–120 mm 50–120 mm
Thickness 0.8–2.0 mm 1.2–2.5 mm 2.0–3.0 mm (sidewalls)
Surface Finish EG (8-12μm) or HDG (≥50μm) No. 2B mill finish HDG to ASTM A123
Load Rating Per IEC 61537 NEMA 12A/12B/20A Up to 600 N/m at 2m span

Configuration Options and Accessories

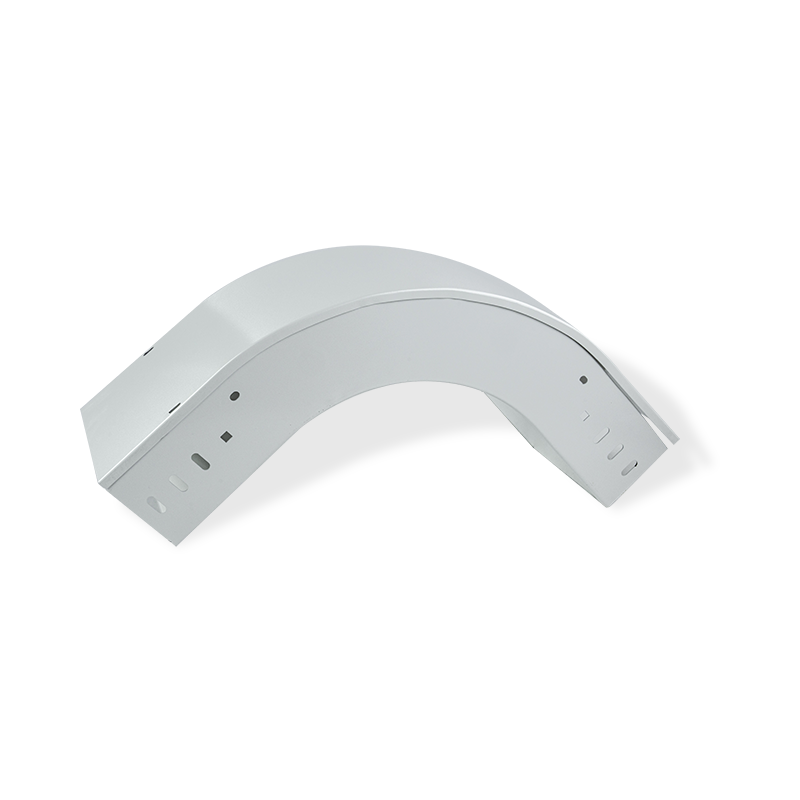

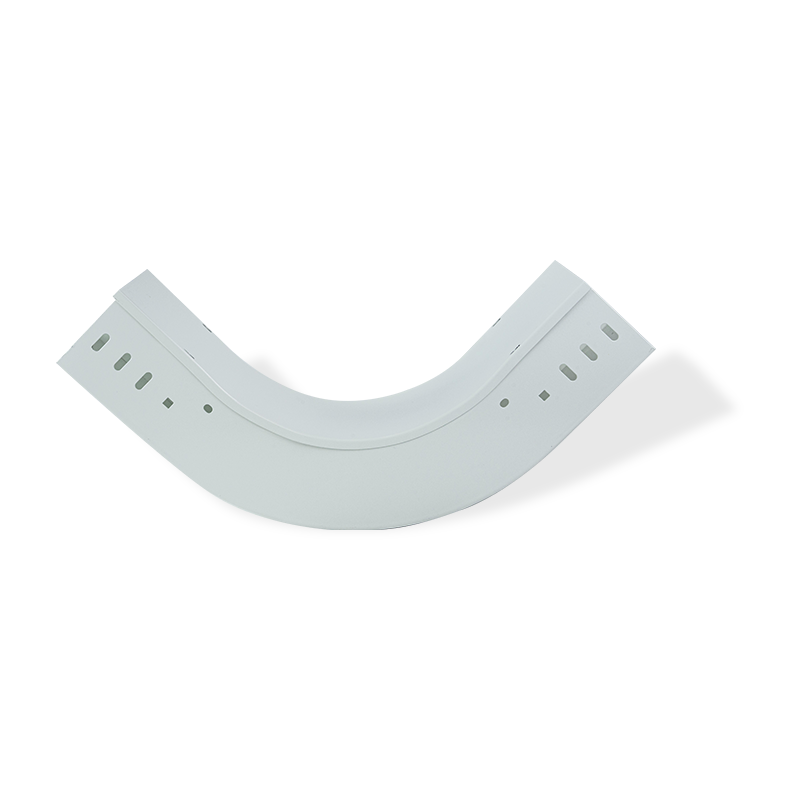

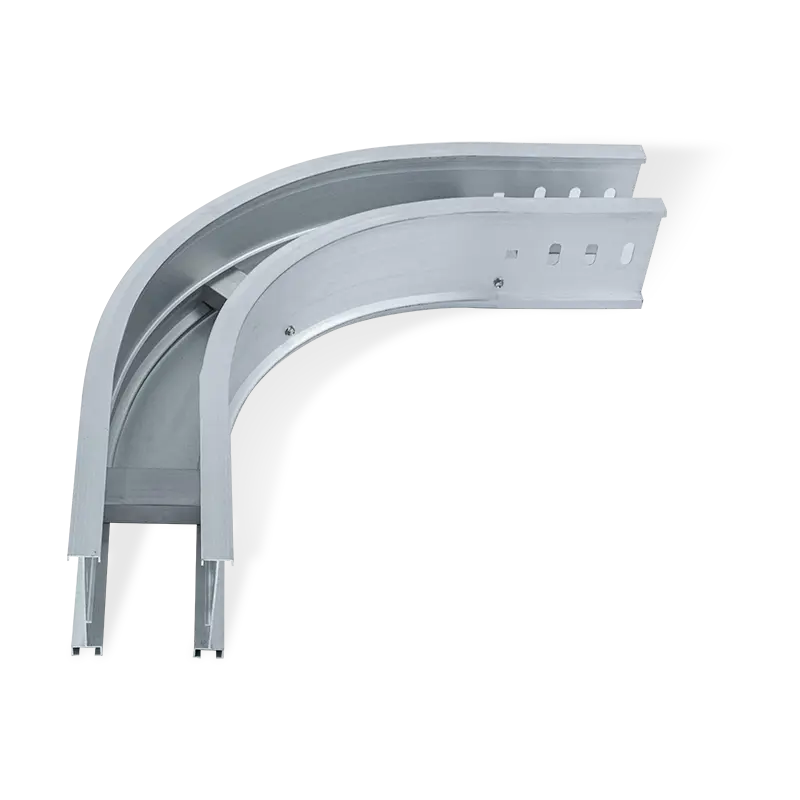

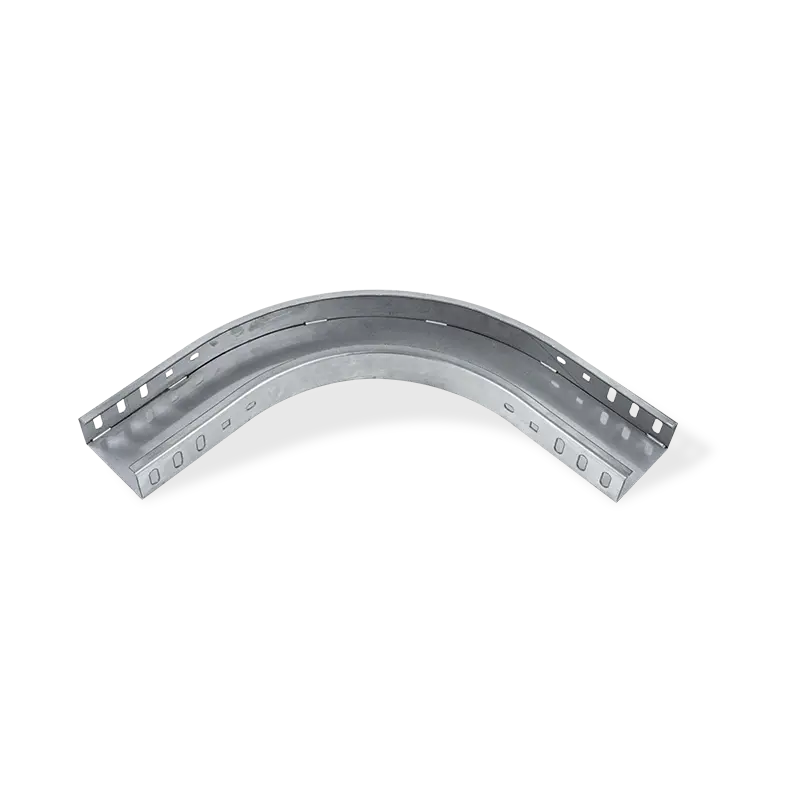

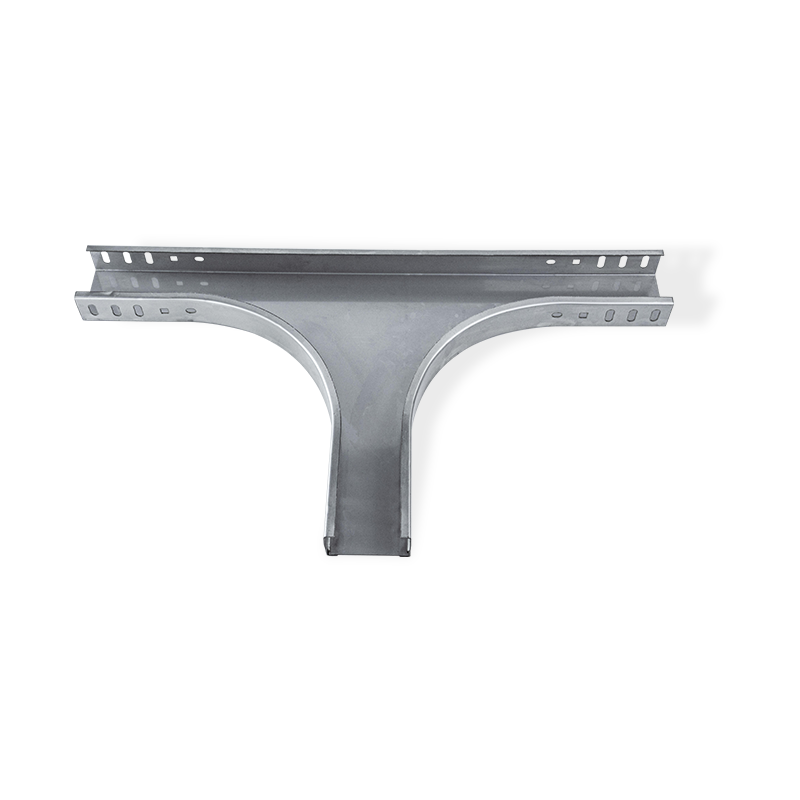

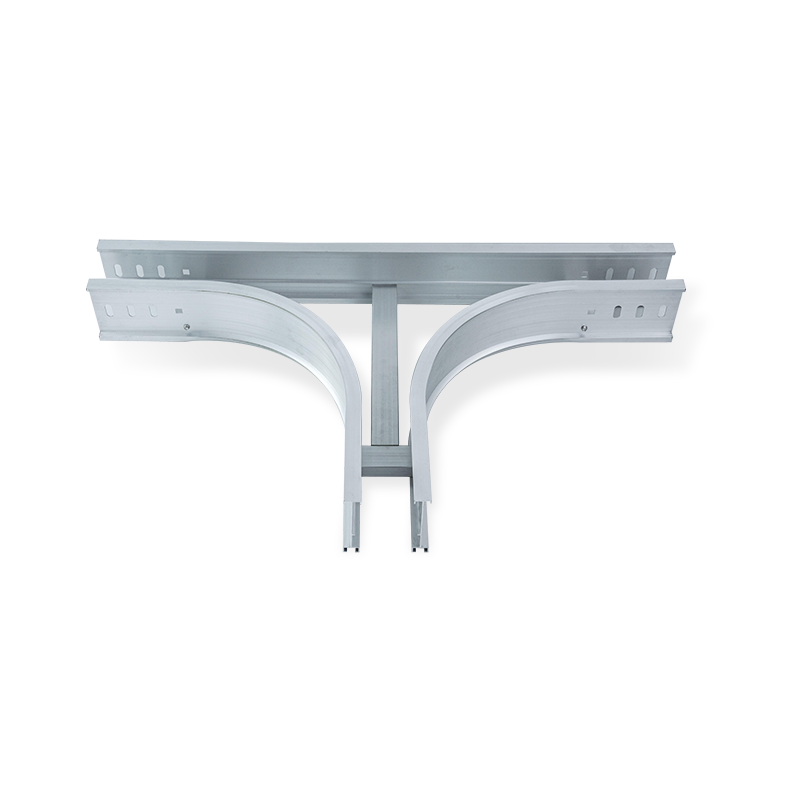

Every trough system can be configured to your layout. We supply straight sections in standard 3000mm lengths, with custom lengths available. For direction changes, our range includes horizontal and vertical elbows, tees, and cross pieces, as well as round bend accessories for smooth cable transitions. All accessories are available in matching materials and finishes to maintain system integrity.

Our Accessories include splice plates, couplers, cover clips, and mounting brackets, ensuring a complete installation package.

Manufacturing and Quality Assurance

As a factory with fully automated production lines, we control quality from raw material to final inspection. Our processes include precision slitting, automatic forming, welding, riveting, and electrostatic spraying. Each trough type undergoes rigorous checks using 3D scanners and strength testers to verify dimensional accuracy and structural integrity. We hold ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and CE certifications, and our products are tested to standards like IEC 61537 and DIN 51130 where applicable.

Information We Use to Configure Your Solution

To prepare a precise quotation and engineering proposal, we need the following project details:

  • Cable types and total fill area – to determine width and load requirements.
  • Environmental conditions – indoor/outdoor, humidity, chemical exposure, temperature range.
  • Support spacing and mounting method – wall-mounted, ceiling-suspended, or floor-supported.
  • Required accessories – elbows, tees, covers, and fixing hardware.
  • Material and finish preference – galvanized, stainless steel, aluminum, or powder-coated.
  • Any special certifications – fire resistance, marine, or seismic requirements.

Frequently Asked Questions

Q: What is the difference between trough type and ladder type cable trays?
A: Trough type trays have a solid or perforated bottom that fully supports cables, providing protection from dust and debris. Ladder type trays have rungs, offering better ventilation but less protection. Troughs are preferred where cable shielding or containment is critical.

Q: Can the non-slip cover be used for walking access?
A: Yes, our chequered plate cover is designed with a raised diamond pattern that meets slip resistance standards like DIN 51130 R12, making it safe for foot traffic during maintenance.

Q: Do you provide custom lengths and finishes?
A: Absolutely. We can cut sections to any length and offer finishes such as hot-dip galvanized, powder coating in RAL colors, or stainless steel with brushed or mirror finish.

Q: How do I ensure the correct load capacity for my project?
A: Provide us with the cable weight per meter and the maximum support span. Our engineers will calculate the required tray width and thickness to meet your load specifications.

Q: What is the typical lead time for a custom order?
A: Lead times vary based on quantity and complexity, but our automated lines allow efficient production. Contact us with your project schedule, and we will confirm a delivery date.
