Wave wire mesh cable tray/cureved side wire
Wave wire mesh cable tray/cureved side wire

Wave wire mesh cable tray/cureved side wire

Inquiry
PREV：Wire mesh cable trayNEXT：No next article
Product introduction
WIRE MESH · WAVE PROFILE · CURVED SIDE

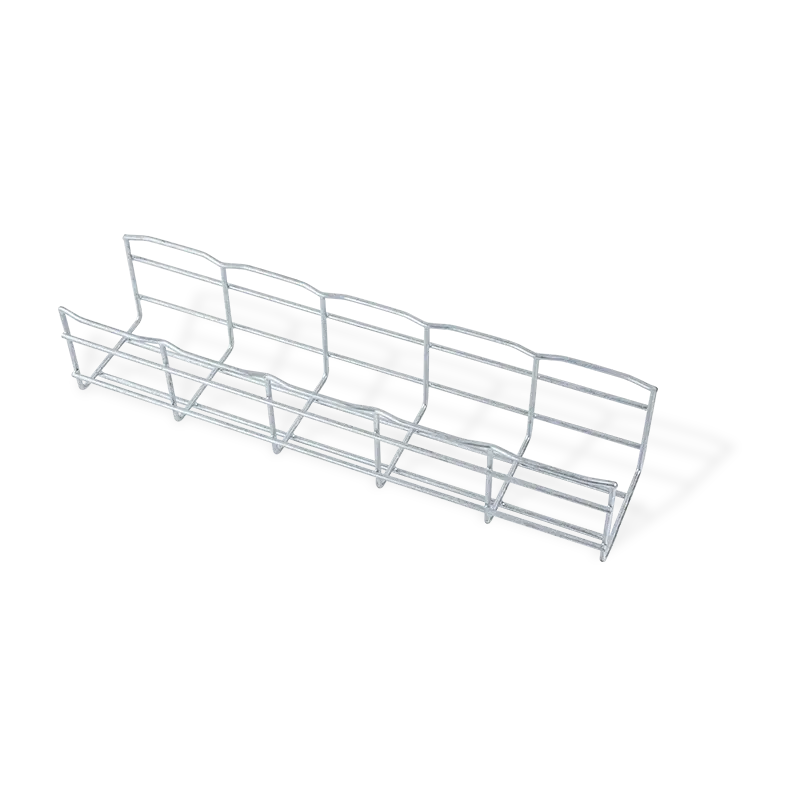

Wave wire mesh cable tray / curved side wire
Wave wire mesh cable tray, also known as curved side wire mesh tray, is a specialized cable management system featuring a distinctive undulating wave profile along the side rails and a curved wire edge design. Manufactured from electro-galvanized or hot-dip galvanized steel wire (3.5mm-6.0mm diameter), this tray combines the ventilation benefits of open mesh construction with enhanced structural rigidity provided by the wave-shaped side contours. The curved side wire design eliminates sharp edges, protecting cable jackets during installation and maintenance. The wave profile adds aesthetic appeal while maintaining the open grid structure that allows 360-degree airflow, preventing heat buildup around cables. Available in standard widths from 150mm to 600mm with side heights of 50mm and 80mm, this system is suitable for data centers, commercial buildings, and industrial environments requiring efficient cable management with a modern visual aesthetic.
CORE ADVANTAGES
Wave profile rigidity
Undulating side rail design increases structural strength, allowing longer spans between supports while maintaining load capacity.
Curved edge protection
Rounded wire edges eliminate sharp contact points, preventing abrasion and damage to cable jackets during pulling and installation.
Ventilation efficiency
Open mesh design provides 360-degree airflow around cables, maintaining ampacity and preventing thermal degradation.
Modern aesthetic design
Distinctive wave profile offers a contemporary visual appearance suitable for exposed installations in architectural spaces.
Wave wire mesh cable tray curved side wire
Material Steel wire Q235B
Finish EG · HDG · powder coated
Wire diameter 3.5mm – 6.0mm
Wave profile Undulating side rail
Width range 150mm – 600mm
Side height 50mm · 80mm
PRODUCT SPECIFICATIONS
Base material Q235B carbon steel wire, cold-drawn
Surface finish Electro-galvanized (8-12μm) / Hot-dip galvanized (≥50μm) / Powder coated (RAL colors)
Wire diameter range 3.5mm (light duty), 4.5mm (standard), 6.0mm (heavy duty)
Wave profile Undulating wave side rail with consistent amplitude and pitch
Mesh grid size Standard 50mm x 100mm or 50mm x 50mm
Width options 150mm, 200mm, 300mm, 400mm, 500mm, 600mm
Side height 50mm, 80mm (custom heights available)
Section length 3000mm standard (custom lengths available)
Curved edge radius ≥3mm (wire end turned inward)
Temperature range -30°C to +150°C (galvanized) · -30°C to +250°C (stainless)
APPLICATION SCENARIOS
Data centers – Open mesh design provides optimal airflow for high-density server room cabling.
Commercial buildings – Exposed ceiling installations where wave profile adds architectural interest.
Industrial automation – Control cable routing in manufacturing facilities with vibration requirements.
Telecommunications – Structured cabling for central offices and exchange buildings.
Retail and public spaces – Visually appealing cable management in open-plan environments.
FREQUENTLY ASKED QUESTIONS
◇ What is the difference between wave mesh tray and standard mesh tray?
The wave mesh tray features an undulating side rail profile that increases structural rigidity, allowing longer spans between supports. The wave design also provides a distinctive aesthetic appearance, making it suitable for exposed architectural installations where visual appeal is important.
◇ How does the curved side wire protect cables?
The curved side wire feature means the wire ends are turned inward or rolled to create a smooth, rounded edge. This eliminates sharp points that could abrade cable jackets during installation, pulling, or maintenance, protecting the insulation from damage.
◇ Can the wave mesh tray be cut to size on site?
Yes. Wave mesh trays can be cut using standard bolt cutters or wire cutters for field modifications. However, care should be taken to file or round any cut wire ends to maintain the curved edge protection and prevent cable damage.
◇ Is the wave profile available in stainless steel?
Yes. While standard wave mesh trays are manufactured from galvanized steel, stainless steel versions (AISI 304 or 316L) are available for corrosive environments, food processing, or pharmaceutical applications requiring stainless steel construction.

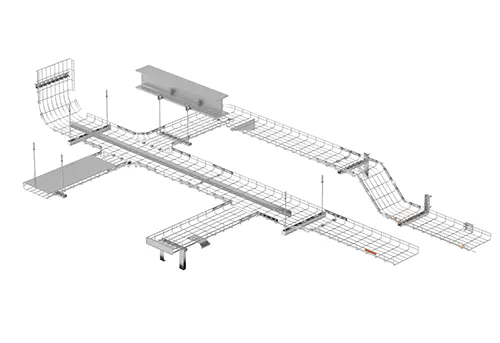

INSTALLATION GUIDELINES
Support spacing should not exceed 1.5 meters for standard loads; reduce to 1.2 meters for heavy cable fills or vibration applications.
Use wire mesh tray couplers or splice plates for joining sections; ensure curved edges align to maintain cable protection across joints.
For outdoor installations, specify hot-dip galvanized finish with minimum 50μm coating thickness.
STORAGE & MAINTENANCE
Store mesh trays in a dry, ventilated area to prevent oxidation, particularly for electro-galvanized products before final installation.
Inspect curved side edges for any sharp burrs after handling; dress with a file or deburring tool if necessary.
For powder-coated finishes, avoid impact damage that could chip the coating and expose base steel to corrosion.
Wave mesh cable tray · curved side wire · Q235B · EG/HDG/powder coated · 3.5-6.0mm wire · 150-600mm width
Physical Properties
Type Wire type
Material Material carbon steel (Q235B), stainless steel ( 304L / 316L )
Surface finishing/treatment

Pre-galvanized 8um

Electro zinc Plating（≥12um）

Hot -dip galvanized（＞60um）

Plastic-spayed（＞60um）

Power coating

Acid washing +polishing （option）
Dimension range customizable is available Width 50mm~1000mm
Side Rail Height 25mm-200mm
Length 300mm-6000mm
Thickness/wire diameter 3.5/4.0/4.0/6.0/8.0
Max. Working Load 100-400kg(100-400kgs upon size and thickness、Depends on the wire diameter)
Accessories/related products
Product features 1. The weight of wire mesh cable tray are 1/5 of traditional cable trays, making them easier to install.

2. The open design allows continuous airflow, which prevents overheating and build-up of dust and contaminants.

3. All kinds of elbows can be made at the project site flexibly.

4. Multiple finishes are available for indoor and out door applications.

5. Cable visibility allows for more convenient upgrading and maintenance. 6.Straight and wavy edges can be selected by customers.
Color Silver or others/according to customers
Enviroment demmand Indoor, outdoor, high corrosion occasions
Application Wire basket cable tray and cable tray accessories are widely used in many industries, such as data center, energy industry, food production line etc.
