Product introduction
WALL MOUNT · CABLE TRAY SUPPORT · ADJUSTABLE
Wall bracket for cable tray
Wall bracket for cable tray is a structural mounting component designed to securely attach cable tray systems to vertical surfaces such as walls, columns, and structural supports. Manufactured from hot-dip galvanized steel (Q235B) with a minimum coating thickness of 60μm, these brackets provide reliable load support while accommodating various tray widths and installation heights. The bracket features an adjustable arm length and angle, allowing precise alignment with tray runs while compensating for wall irregularities. Available in load capacities ranging from 50kg to 300kg per bracket, with arm lengths from 150mm to 800mm, the system is suitable for industrial, commercial, and infrastructure applications where wall-mounted cable management is required.
CORE ADVANTAGES
Adjustable arm length
Extendable arm design accommodates tray widths from 150mm to 800mm, providing flexibility for various tray configurations.
Heavy-duty load capacity
Engineered to support up to 300kg per bracket with safety factor of 2.0, suitable for heavy power cable installations.
Hot-dip galvanized finish
60μm+ zinc coating provides excellent corrosion resistance for indoor and outdoor applications.
Quick installation design
Pre-punched mounting holes and slotted adjustment channels enable rapid installation and on-site alignment.
Vertical angle adjustment
±10° tilt compensation allows brackets to maintain level support even on uneven wall surfaces.
Universal compatibility
Compatible with all standard cable tray types including ladder, trough, and wire mesh systems.
Material Q235B steel
Finish HDG ≥60μm
Arm length 150mm – 800mm
Load capacity 50kg – 300kg
Adjustment ±10° tilt
Thickness 3.0mm – 6.0mm
PRODUCT SPECIFICATIONS
Base material Q235B structural steel (hot-rolled or cold-formed)
Surface finish Hot-dip galvanized per ASTM A123, minimum 60μm coating
Arm length range 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, 800mm
Load capacity 50kg (light duty), 100kg (standard), 200kg (heavy), 300kg (extra heavy)
Material thickness 3.0mm (standard), 4.5mm (heavy), 6.0mm (extra heavy)
Vertical adjustment ±10° tilt compensation via slotted pivot connection
Mounting type Wall-mounted with expansion anchors or chemical anchors
Compatible tray types Ladder, trough, wire mesh, solid bottom, ventilated
Fasteners M10-M16 galvanized or stainless steel bolts (included with select models)
Temperature range -40°C to +250°C
Design life
APPLICATION SCENARIOS
Industrial facilities – Wall-mounted cable tray support in manufacturing plants, warehouses, and processing areas.
Commercial buildings – Vertical cable management in electrical rooms, parking garages, and mechanical spaces.
Infrastructure projects – Tunnel walls, bridge underpasses, and utility corridor cable support systems.
Data centers – Wall-mounted fiber and copper tray support in equipment rooms and distribution areas.
Outdoor installations – Substation walls, exterior building surfaces, and rooftop cable management systems.
FREQUENTLY ASKED QUESTIONS
✦ What type of wall anchors should be used with these brackets?
For concrete or masonry walls, use expansion anchors (wedge anchors or drop-in anchors) sized for the bracket load and wall material. For steel structures, use structural bolts with washers. For hollow walls or drywall, use toggle bolts or hollow-wall anchors. Always follow anchor manufacturer specifications for embedment depth and torque.
✦ How do I determine the correct bracket spacing for my installation?
Bracket spacing is determined by the tray load and span requirements. For standard industrial loads, spacing of 1.5m to 2.0m is typical. For heavy loads or longer spans, reduce spacing to 1.0m-1.5m. Always refer to the tray manufacturer's load-span tables and bracket load capacity ratings for specific guidance.
✦ Can these brackets be used outdoors?
Yes. The hot-dip galvanized finish with minimum 60μm coating provides excellent corrosion resistance for outdoor applications. For coastal or high-corrosion environments, we recommend specifying a thicker coating (≥85μm) or stainless steel material.
✦ Are the brackets compatible with all tray widths?
Yes. The adjustable arm design and slotted mounting holes allow brackets to accommodate tray widths from 150mm to 800mm. For wider trays (up to 1200mm), custom arm extensions are available upon request.
INSTALLATION GUIDELINES
Ensure wall surface is structurally sound and capable of supporting the combined bracket and cable load without failure.
Use appropriate wall anchors based on substrate type; drill holes to manufacturer specifications and clean debris before anchor insertion.
Level brackets horizontally and vertically before tightening fasteners. Use the ±10° adjustment feature to compensate for wall irregularities.
STORAGE & MAINTENANCE
Store brackets in dry, ventilated area to prevent moisture condensation and potential white rust formation on galvanized surfaces.
Inspect galvanized coating for scratches or damage during transport; apply zinc-rich touch-up paint to any exposed steel prior to installation.
Periodically inspect bracket connections and fasteners for signs of loosening or corrosion during routine facility maintenance.
Wall bracket for cable tray · Q235B · HDG 60μm · 150-800mm arm · 50-300kg capacity · ±10° tilt

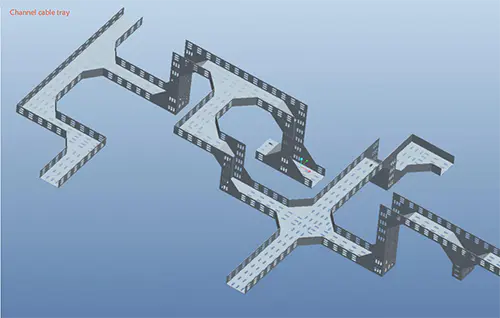

Physical Properties
Type Punched type
Material Material Steel、 Aluminum、ss304、ss316L
Surface finishing/treatment

Pre-galvanized 8um/ Electro zinc Plating（≥12um）

Hot -dip galvanized（＞60um）

Plastic-spayed（＞60um）

Power coating

Acid washing +polishing （option）

Dimension range

customizable is available

 Width
Side Rail Height
Length
Thickness/wire diameter
Max. Working Load According To Size
Accessories/related products
Product Features Lightweight, high load capacity, aesthetically pleasing, simple structure, and easy to install.
Color Silver or others/According to customers
Enviroment demmand
Application Oil&gas、waste treatment、metro rail-way、power plant、petrochemical、infrastructural、civil industry、marine、mining
